Modular Aluminum Stage Truss for Events 500kg Capacity
| 원래 장소 | 중국 장수 |
|---|---|
| 브랜드 이름 | Shizhan |
| 모델 번호 | 알루미늄 트러스 -RT |
| 최소 주문 수량 | 100 |
| 가격 | $44-46 |
무료샘플과 쿠폰을 위해 나와 연락하세요.
왓츠앱:0086 18588475571
위챗: 0086 18588475571
스카이프: sales10@aixton.com
만약 당신이 어떠한 관심도 가지면, 우리가 24 시간 온라인 도움말을 제공합니다.
x제품 상세 정보
| 연결 유형 | 핀 연결 | 로드 베어링 용량 | 500kg |
|---|---|---|---|
| 재료 | 알루미늄 합금 | 유니트 길이 | 0.5m,1m,2m,3m,4m,5m 또는 주문 제작됩니다 |
| 트러스 모양 | 스퀘어, 트라이앵글이 만곡되거나, 특화했습니다 | 트러스 섹션 모양 | 정사각형 또는 원형 |
| 트러스 튜브 두께 | 1.5/2/3mm | 트러스 튜브 직경 | 20mm, 32mm, 50mm |
| 경도 | 16도 | 가벼운 의무 트러스 | 200*200mm; 250*250mm |
| 중간 근무 트러스 | 290*290mm, 300*300mm; 350*350mm, 300*400mm; 400*400mm; 450*450mm; 400*600mm | 트러스 | 520*760mm; 600*760mm; 600*1000mm |
| 메인 튜브 두께 | 30*2mm; 50*3mm; 50*4mm; 50*5mm | 바이스 튜브 두께 | 18*2mm; 20*2.5mm; 25*2.5mm |
| 브레이스 튜브 두께 | 20*2mm; 25*2mm; 30*2mm | ||
| 강조하다 | modular aluminum stage truss,aluminum lighting truss 500kg capacity,event truss with high load capacity |
||
제품 설명
Aluminium Stage Truss Structure Outdoor Stage Truss Design
Product Specifications
| Attribute | Value |
|---|---|
| Connection Type | Pin Connection |
| Feature | Durable |
| Frame design | Modular |
| Product Type | Display Truss |
| Application | Events, Concert, Music, Performance, DJ Band, Event, Exhibition |
| Welding | Welding |
| Load-bearing Capacity | 500kg |
| Assembly Method | Quick installation |
| Structure Type | Modular Structure |
| Material | Aluminum alloy |
| Unit length | 0.5m, 1m, 2m, 3m, 4m, 5m or customized |
| Color | Silver, black or customized |
| Truss section shape | Square or round |
| Shape | Square, Triangle, round or customized |
| Truss tube thickness | 1.5/2/3MM |
| Truss tube diameter | 20mm, 32mm, 50mm |
| Hardness | 16 degree |
Technical Details
Truss Material: Aluminum alloy 6082-T6
Light duty truss: 200*200mm; 250*250mm
Medium duty truss: 290*290mm, 300*300mm; 350*350mm; 300*400mm; 400*400mm; 450*450mm; 400*600mm
Heavy duty truss: 520*760mm; 600*760mm; 600*1000mm
Main tube thickness: 30*2mm; 50*3mm; 50*4mm; 50*5mm
Vice tube thickness: 18*2mm; 20*2.5mm; 25*2.5mm
Brace tube thickness: 20*2mm; 25*2mm; 30*2mm
Length: 0.5m/1m/1.5m/2m...4m or custom size
Truss type: Spigot or bolt
Truss Shape: Ladder truss, triangular truss, square truss, arch truss, circle truss
Color: Silver or black, blue, green...
Usage: Concert, new product release, fashion show, booth stand construction
Delivery Time: 10 working days
Applications

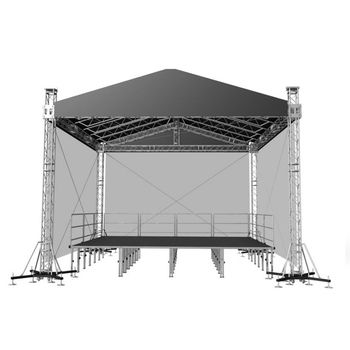

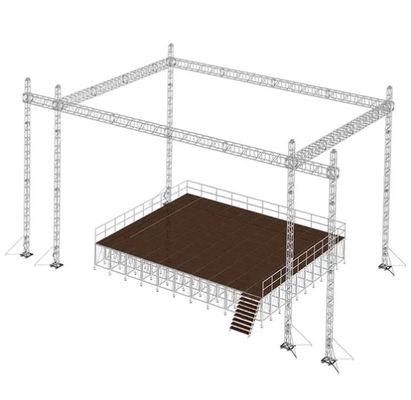

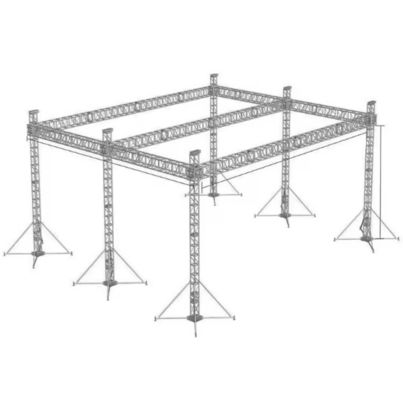

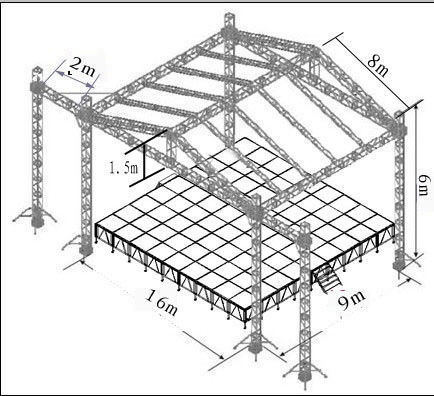

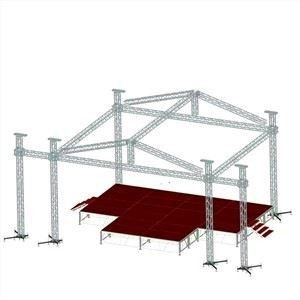

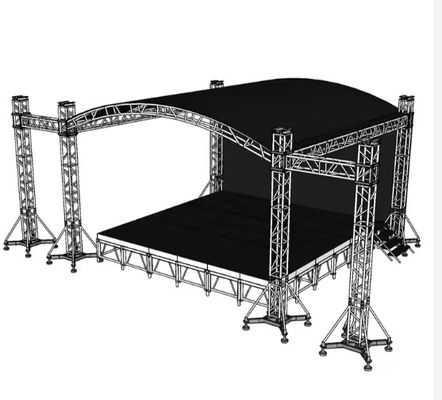

Our aluminum alloy stage truss is a modular system made of lightweight aluminum alloy tubes that can be easily assembled and disassembled. It is widely used in various events and applications:
- Concerts and festivals: Build stages for concerts, festivals, and outdoor events with configurable shapes and sizes
- Theatrical productions: Construct sets, backdrops, and structures for plays, musicals, and operas
- Exhibitions and trade shows: Create booths, displays, and exhibition structures
- Corporate events: Build stages and backdrops for product launches, conferences, and award ceremonies
- Sports events: Construct race start/finish lines, podiums, and scoreboards
Why Choose Our Products
- TUV, SGS, CE Certified products
- 15 years experience in truss, stage, barrier and scaffolding
- 35,000 m² workshop with excellent production capacity
- Professional engineering team for perfect project solutions
- Own aluminum profile production line for quality control
- Strict QC process with installation test before delivery
Frequently Asked Questions
How do I know your quality? Our products have TUV/SGS/CE/ISO9001 certificates and we offer samples for quality checking.
Payment methods: T/T, Western Union, Trade Assurance, L/C.
Warranty: 1 year warranty with free replacement for non-artificial damage.
Customization: Our technical team offers perfect solutions for custom projects.
