Aluminum Spigot Truss for Stage Events 500kg Load Capacity
| 원래 장소 | 중국 장수 |
|---|---|
| 브랜드 이름 | Shizhan |
| 모델 번호 | 알루미늄 트러스 -RT |
| 최소 주문 수량 | 100 |
| 가격 | $44-46 |
무료샘플과 쿠폰을 위해 나와 연락하세요.
왓츠앱:0086 18588475571
위챗: 0086 18588475571
스카이프: sales10@aixton.com
만약 당신이 어떠한 관심도 가지면, 우리가 24 시간 온라인 도움말을 제공합니다.
x제품 상세 정보
| 연결 유형 | 핀 연결 | 재료 | 알루미늄 합금 6082-T6 |
|---|---|---|---|
| 로드 베어링 용량 | 500kg | 유니트 길이 | 0.5m,1m,2m,3m,4m,5m 또는 주문 제작됩니다 |
| 트러스 모양 | 정사각형, 둥근, 삼각형, 사각형 또는 맞춤형 | 트러스 섹션 모양 | 정사각형 또는 원형 |
| 트러스 튜브 두께 | 1.5/2/3mm | 트러스 튜브 직경 | 20mm, 32mm, 50mm |
| 경도 | 16도 | 가벼운 듀티 크기 | 200*200mm; 250*250mm |
| 중간 규모 | 290*290mm, 300*300mm; 350*350mm, 300*400mm, 400*400mm, 450*450mm, 400*600mm | 무거운 의무 크기 | 520*760mm; 600*760mm; 600*1000mm |
| 메인 튜브 두께 | 30*2mm; 50*3mm; 50*4mm; 50*5mm | 바이스 튜브 두께 | 18*2mm; 20*2.5mm; 25*2.5mm |
| 브레이스 튜브 두께 | 20*2mm; 25*2mm; 30*2mm | ||
| 강조하다 | aluminum spigot truss 500kg capacity,stage event truss aluminum spigot,aluminum lighting truss heavy duty |
||
제품 설명

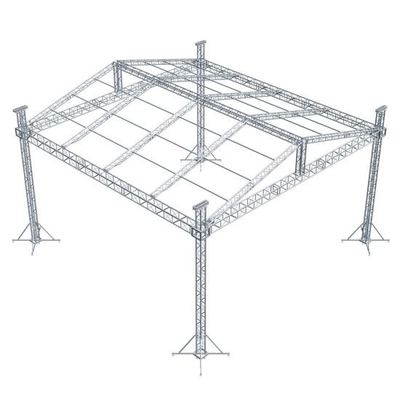

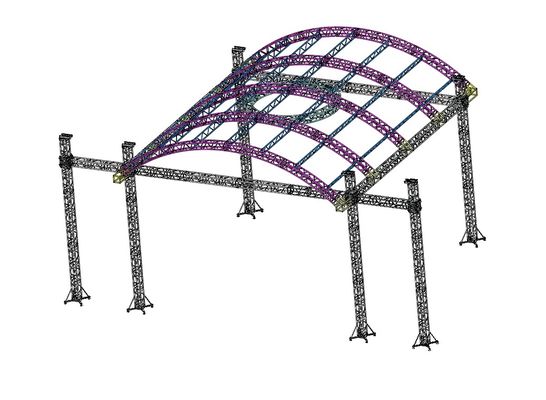

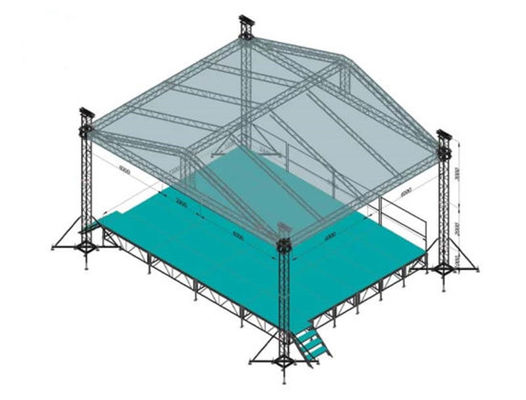

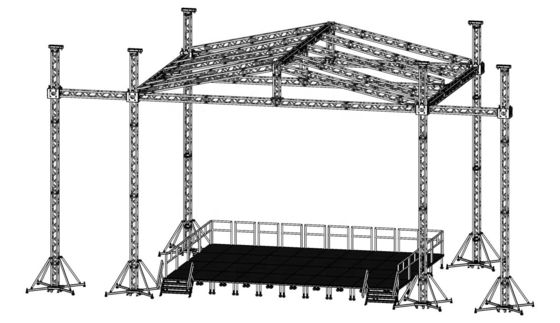

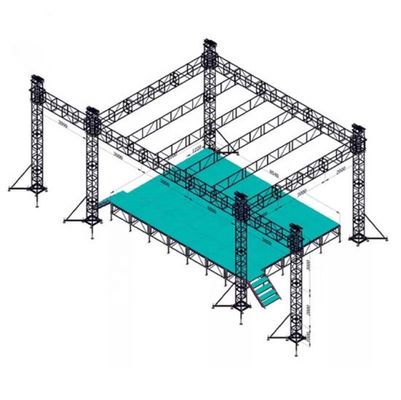

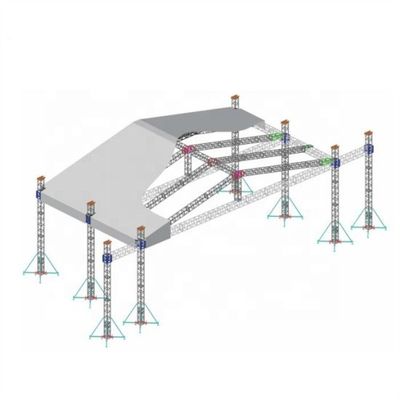

Aluminum Spigot Stage Event Truss
Product Specifications
| Connection Type | Pin Connection |
| Feature | Quick installation |
| Shape | Rectangle, square, Triangle, round or customized |
| Frame design | Square |
| Product Type | Display Truss |
| Application | Exhibitions, Concert, Music, Performance, DJ Band, Event, Exhibition |
| Material | Aluminium, aluminum alloy |
| Welding | Welding |
| Load-bearing Capacity | 500kg |
| Assembly Method | Quick installation |
| Structure Type | Modular Structure |
| Unit length | 0.5m,1m,2m,3m,4m,5m or customized |
| Color | Silver, black or customized |
| Truss section shape | Square or round |
| Truss tube thickness | 1.5/2/3MM |
| Truss tube diameter | 20mm,32mm,50mm |
| Hardness | 16 degree |
Technical Details
| Truss Material | Aluminum alloy 6082-T6 |
| Light duty truss | 200*200mm; 250*250mm |
| Medium duty truss | 290*290mm,300*300mm; 350*350mm 300*400mm; 400*400mm; 450*450mm; 400*600mm |
| Heavy duty truss | 520*760mm; 600*760mm; 600*1000mm |
| Main tube thickness | 30*2mm; 50*3mm; 50*4mm; 50*5mm |
| Vice tube thickness | 18*2mm; 20*2.5mm; 25*2.5mm |
| Brace tube thickness | 20*2mm; 25*2mm; 30*2mm |
| Length | 0.5m/1m/1.5m/2m...4m or custom size |
| Truss type | Spigot or bolt |
| Truss Shape | Ladder truss, triangular truss, square truss, arch truss, circle truss |
| Color | Silver or black, blue, green... |
| Usage | Concert, new product release, fashion show, booth stand construction |
| Delivery Time | 10 working days |
Applications
- Concerts and festivals: Build stages for outdoor events with various configurations and accessories
- Theatrical productions: Create sets, backdrops, and structures for plays and musicals
- Exhibitions and trade shows: Construct booths and displays for product showcases
- Corporate events: Build professional stages for product launches and conferences
- Sports events: Create structures for race lines, podiums, and scoreboards
Company Advantages
- TUV, SGS, CE Certified products
- 15 years experience in truss and stage manufacturing
- 35,000 m² workshop with strong production capacity
- Professional engineering team for project solutions
- Own aluminum profile production line for quality control
- Strict QC process with installation testing before delivery
Frequently Asked Questions
Why should I choose your company instead of other suppliers?
We offer certified products with 15 years of experience, large production capacity, professional engineering support, and strict quality control processes.
How do I know your quality? Do you support sample orders?
Our products have TUV/SGS/CE/ISO9001 certificates. We can provide samples for quality checking before batch orders.
Which kinds of payment does your company accept?
We accept T/T, Western Union, Trade Assurance, and L/C payments.
What is your products warranty time?
Our standard warranty is one year, covering any non-artificial damage with free replacements.
Can you do customized design?
Yes, our technical team provides perfect solutions for custom project requirements.
