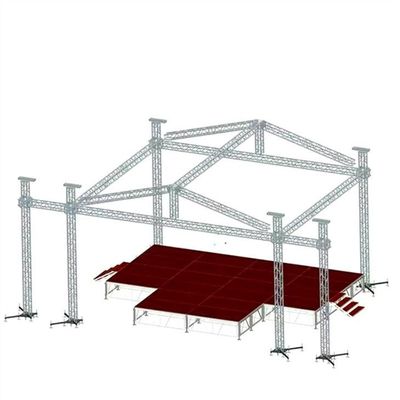

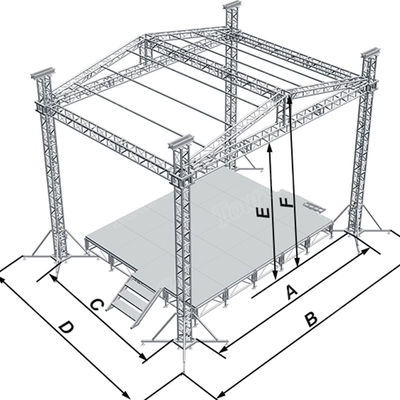

Modular Aluminum Square Roof Truss for Concert Stages 500kg Capacity
| 원래 장소 | 중국 장수 |
|---|---|
| 브랜드 이름 | Shizhan |
| 모델 번호 | 알루미늄 트러스 -RT |
| 최소 주문 수량 | 100 |
| 가격 | US$44-46 |
무료샘플과 쿠폰을 위해 나와 연락하세요.
왓츠앱:0086 18588475571
위챗: 0086 18588475571
스카이프: sales10@aixton.com
만약 당신이 어떠한 관심도 가지면, 우리가 24 시간 온라인 도움말을 제공합니다.
x제품 상세 정보
| 연결 유형 | 핀 연결 | 모양 | 스퀘어, 트라이앵글이 만곡되거나, 특화했습니다 |
|---|---|---|---|
| 프레임 설계 | 모듈 식 | 길이 | 3m |
| 재료 | 알루미늄 합금 6082-T6 | 로드 베어링 용량 | 500kg |
| 조립 방법 | 빠른 설치 | 구조 유형 | 모듈 구조 |
| 유니트 길이 | 0.5m,1m,2m,3m,4m,5m 또는 주문 제작됩니다 | 트러스 섹션 모양 | 정사각형 또는 원형 |
| 트러스 튜브 두께 | 1.5/2/3mm | 트러스 튜브 직경 | 20mm, 32mm, 50mm |
| 경도 | 16도 | 메인 튜브 두께 | 30*2mm; 50*3mm; 50*4mm; 50*5mm |
| 바이스 튜브 두께 | 18*2mm; 20*2.5mm; 25*2.5mm | ||
| 강조하다 | modular aluminum roof truss,concert stage truss 500kg,aluminum lighting truss square |
||
제품 설명
Concert Stage Square Roof Truss
Product Specifications
| Attribute | Value |
|---|---|
| Connection Type | Pin Connection |
| Feature | Quick installation |
| Shape | Square, Triangle, Round or Customized |
| Frame Design | Modular |
| Product Type | Display Truss |
| Application | Exhibitions, Concert, Music, Performance, DJ Band, Event, Exhibition |
| Material | Aluminium, Aluminum Alloy |
| Load-bearing Capacity | 500kg |
| Unit Length | 0.5m, 1m, 2m, 3m, 4m, 5m or Customized |
| Color | Silver, Black or Customized |
Technical Details
| Truss Material | Aluminum alloy 6082-T6 |
| Light Duty Truss | 200*200mm; 250*250mm |
| Medium Duty Truss | 290*290mm, 300*300mm; 350*350mm; 300*400mm; 400*400mm; 450*450mm; 400*600mm |
| Heavy Duty Truss | 520*760mm; 600*760mm; 600*1000mm |
| Main Tube Thickness | 30*2mm; 50*3mm; 50*4mm; 50*5mm |
| Length Options | 0.5m/1m/1.5m/2m up to 4m or custom size |
| Truss Type | Spigot or bolt |
| Truss Shape | Ladder truss, triangular truss, square truss, arch truss, circle truss |
| Color Options | Silver, black, blue, green or custom |
| Delivery Time | 10 working days |
Applications
Our aluminum alloy stage truss system is a versatile modular solution for various events and applications:
- Concerts and festivals: Ideal for building stages with quick assembly and disassembly
- Theatrical productions: Perfect for sets, backdrops, and stage structures
- Exhibitions and trade shows: Excellent for booth construction and display frameworks
- Corporate events: Suitable for product launches, conferences, and award ceremonies
- Sports events: Used for race structures, podiums, and scoreboards
Company Advantages
- TUV, SGS, CE Certified products
- 15 years experience in truss and stage manufacturing
- 35,000 m² workshop with strong production capacity
- Professional engineering team for project solutions
- In-house aluminum profile production for quality control
- Strict QC process with installation testing before delivery
Frequently Asked Questions
How can I verify your product quality?
Our products have TUV/SGS/CE/ISO9001 certifications. We can provide samples for quality evaluation before bulk orders.
What payment methods do you accept?
We accept T/T, Western Union, Trade Assurance, and L/C payments.
What is your product warranty?
We offer a 1-year warranty covering manufacturing defects (excluding artificial damage).
Do you offer custom designs?
Yes, our technical team can provide customized solutions for your specific project requirements.
