12 Inch Aluminum Spigot Square Box Event Truss Quick Connection
| 원래 장소 | 중국 장수 |
|---|---|
| 브랜드 이름 | Shizhan |
| 모델 번호 | 알루미늄 트러스 -RT |
| 최소 주문 수량 | 100 |
| 가격 | $44-46 |
무료샘플과 쿠폰을 위해 나와 연락하세요.
왓츠앱:0086 18588475571
위챗: 0086 18588475571
스카이프: sales10@aixton.com
만약 당신이 어떠한 관심도 가지면, 우리가 24 시간 온라인 도움말을 제공합니다.
x제품 상세 정보
| 연결 유형 | 빠른 연결 | 모양 | 정사각형, 사각형, 삼각형, 둥근 또는 맞춤형 |
|---|---|---|---|
| 프레임 설계 | 정사각형 | 길이 | 1.22m/2.44m |
| 재료 | 알루미늄, 알루미늄 합금 | 로드 베어링 용량 | 1000kg |
| 조립 방법 | 빠른 설치 | 구조 유형 | 모듈 구조 |
| 유니트 길이 | 0.5m, 1m, 2m, 3m, 4m, 5m 또는 Customerized | 트러스 섹션 모양 | 정사각형 또는 원형 |
| 트러스 튜브 두께 | 1.5/2/3mm | 트러스 튜브 직경 | 20mm, 32mm, 50mm |
| 경도 | 16도 | 메인 튜브 두께 | 30*2mm; 50*3mm; 50*4mm; 50*5mm |
| 바이스 튜브 두께 | 18*2mm; 20*2.5mm; 25*2.5mm | ||
| 강조하다 | 12 inch aluminum event truss,square box truss quick connection,aluminum spigot truss with warranty |
||
제품 설명
12 Inch Aluminum Spigot Square Box Event Truss
| Attribute | Value |
|---|---|
| Connection Type | Quick Connection |
| Feature | Durable |
| Shape | Square, Triangle, Round or Customized |
| Frame Design | Square |
| Product Type | Stage Truss |
| Application | Concerts, Music Performance, DJ Band, Event, Exhibition |
| Length | 1.22m/2.44m |
| Material | Aluminum, Aluminum Alloy |
| Welding | Welding |
| Load-bearing Capacity | 1000kg |
| Assembly Method | Quick Installation |
| Structure Type | Modular Structure |
| Unit Length | 0.5m,1m,2m,3m,4m,5m or Customized |
| Color | Silver, Black or Customized |
| Truss Section Shape | Square or Round |
| Truss Tube Thickness | 1.5/2/3MM |
| Truss Tube Diameter | 20mm,32mm,50mm |
| Hardness | 16 Degree |
Technical Specifications
| Truss Material | Aluminum Alloy 6082-T6 |
| Light Duty Truss | 200*200mm; 250*250mm |
| Medium Duty Truss | 290*290mm,300*300mm; 350*350mm 300*400mm; 400*400mm; 450*450mm; 400*600mm |
| Heavy Duty Truss | 520*760mm; 600*760mm; 600*1000mm |
| Main Tube Thickness | 30*2mm; 50*3mm; 50*4mm; 50*5mm |
| Vice Tube Thickness | 18*2mm; 20*2.5mm; 25*2.5mm |
| Brace Tube Thickness | 20*2mm; 25*2mm; 30*2mm |
| Length | 0.5m/1m/1.5m/2m...4m or Custom Size |
| Truss Type | Spigot or Bolt |
| Truss Shape | Ladder truss, Triangular truss, Square truss, Arch truss, Circle truss |
| Color | Silver, Black, Blue, Green... |
| Usage | Concert, Product Release, Fashion Show, Booth Stand Construction |
| Delivery Time | 10 Working Days |
Applications

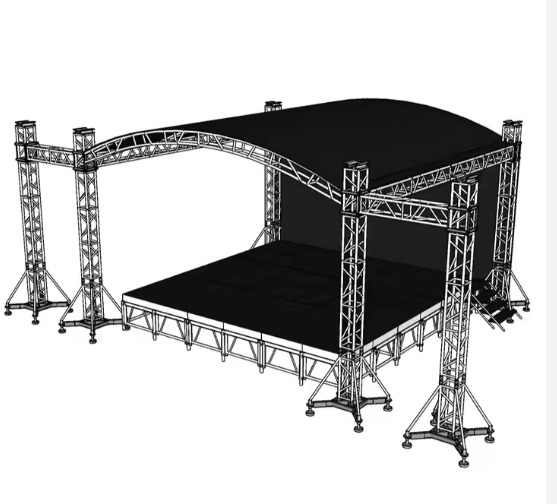

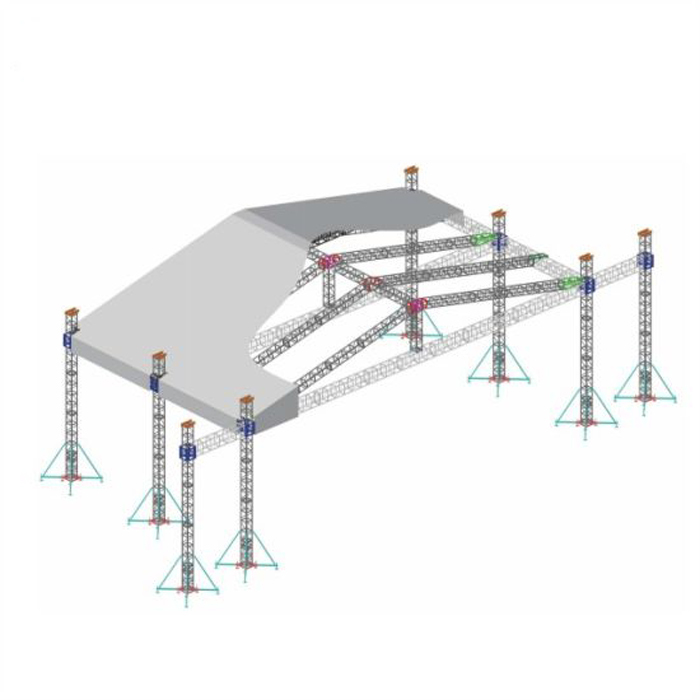

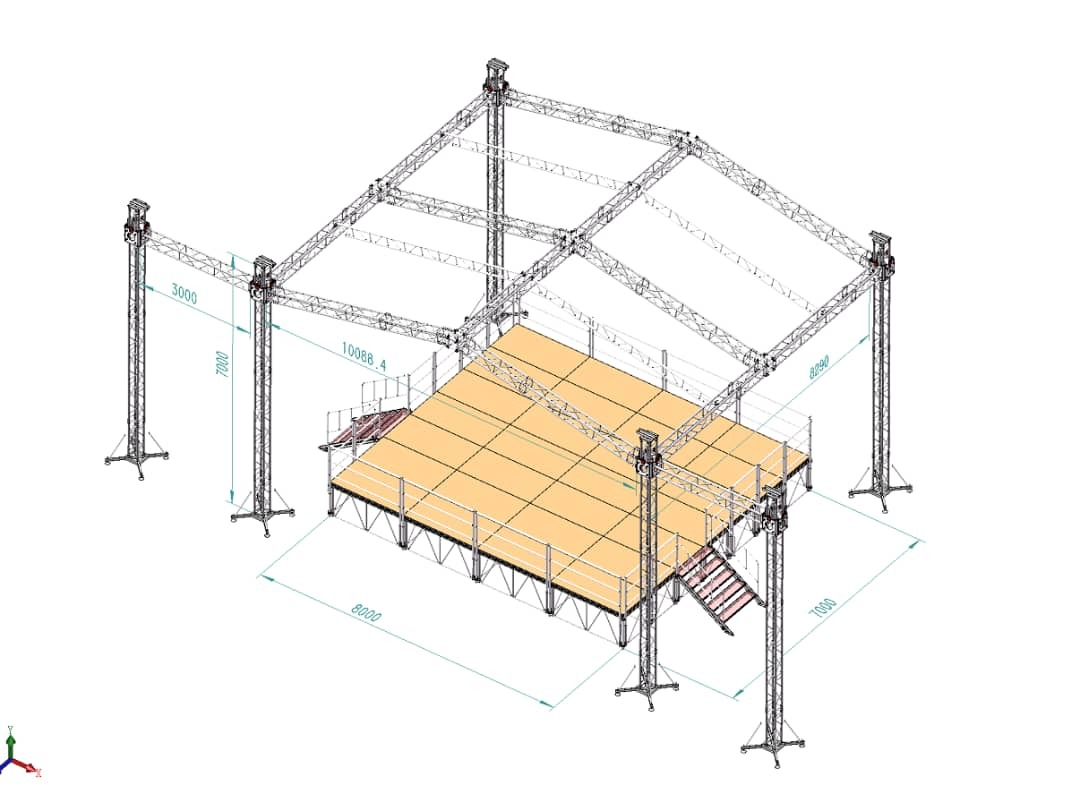

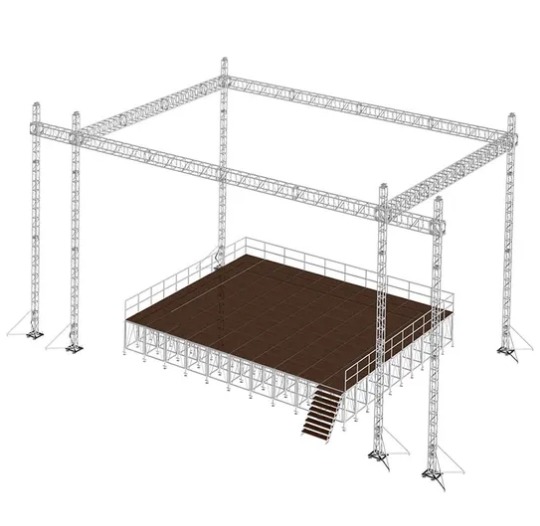

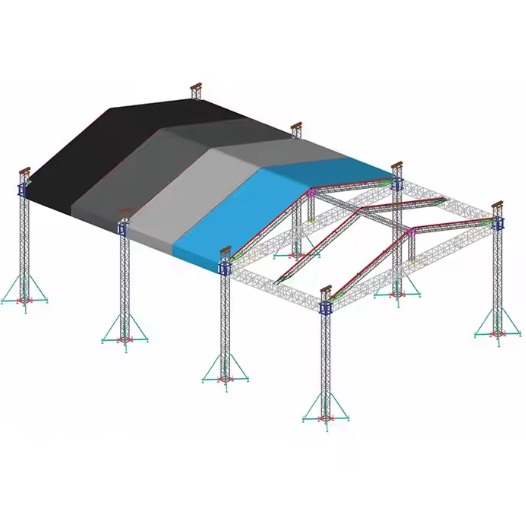

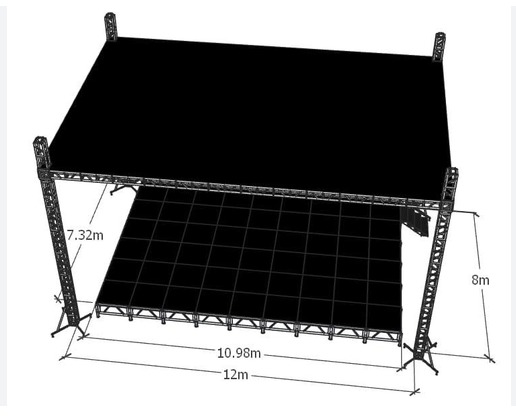

Aluminum alloy stage truss is a type of modular stage that is made of lightweight aluminum alloy tubes and can be easily assembled and disassembled. It is widely used in various events and applications:
- Concerts and Festivals: Used to build stages for concerts, festivals, and outdoor events. Configurable in different shapes and sizes with accessories like guardrails and stairs.
- Theatrical Productions: Used for sets, backdrops, and structures for plays, musicals, and operas. Adjustable heights for different scenes.
- Exhibitions and Trade Shows: Used for booths and displays. Customizable shapes for different products.
- Corporate Events: Used for stages and backdrops at product launches, conferences, and award ceremonies. Custom branding available.
- Sports Events: Used for race lines, podiums, and scoreboards. Configurable for different sports.
Company Advantages
- TUV, SGS, CE Certified products
- 15 years experience in truss, stage, barrier and scaffolding
- 35,000 m² workshop with strong production capacity
- Professional engineering team for perfect project solutions
- Own aluminum profile production line for quality control
- Strict QC team ensuring product condition before delivery
- Process and final inspection with installation testing
Frequently Asked Questions
How can I verify your product quality?
Our products have TUV/SGS/CE/ISO9001 certificates. We also offer samples for quality checking before bulk orders.
What payment methods do you accept?
T/T, Western Union, Trade Assurance, L/C.
What is your product warranty?
One year warranty. During this period, we replace any damaged items not caused by misuse.
Do you offer custom designs?
Yes, our technical team provides perfect solutions for custom projects.
